DLS-LHOP2024071106
C-Laser
General Introduction:MgF2 Achromatic lens is made by gluing two single lenses. The product is optimized by computer to reduce the spherical aberration and chromatic aberration on the axis. Single layer MgF2 film or broadband antireflection film can be selected. NIR achromatic double glued lens and edge blackening version can also be selected. All dimensions are in mm.
The performance of achromatic lens in multicolor (white light) imaging is much better than that of single lens. This product is glued together by two lenses of different materials (literally "lenses without chromatic aberration") to correct the dispersion of the glass. The achromatic lens is widely used in multi-color lighting and imaging, which improves the cost-effectiveness.

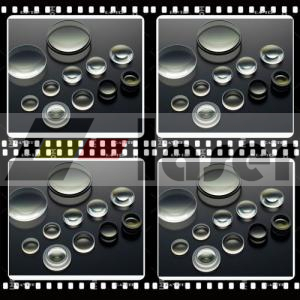

Products Name: MgF2 Coated Achromatic Lenses
Alias: MgF2 coating achromatic Lenses, achromatic lens with MgF2 coating, 1.5λ achromatic lens, MgF2 achromatic Lenses
Products Highlights:
1).Designed Angle of Incidence is 0°
2).Less than 1.75% Reflectance Per Surface at 400 - 700nm
3).Except for MgF2 Coating, VIS 0° & VIS-NIR coated achromatic can also be available
4).High precision & high surface roughness;
5).Sizes can be customized as per the customers' request
6).Quick lead time and delivery time.
7).Matching super optics custom and processing capacity, including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.
8).Excellent post-sale quality warranty, with "3R"-return, replace & refund policy
Main Tech Specification:
Universal Optical Tech Data | |
Optical Lens Type: | Achromatic Lens |
Focal Length Tolerance (%): | ±2 or custom |
Focal Length Specification Wavelength (nm): | 587.6 or custom |
Surface Quality: | 40-20 or custom |
Coating: | VIS 0°; VIS-NIR; MgF2 Coated Achromats or custom |
Coating Specification: | Ravg ≤1.75% at 400 - 700nm or custom |
Power (P-V) @ 632.8nm: | 1.5λor custom |
Bevel: | Protective bevel as needed |
Wavelength Range (nm): | 400 - 700 or custom |
Size/Substrate/Coating Tech Data | |
Dia. | 1-75mm or custom |
EFL | 1.5-400mm or custom |
BFL | 0.92-392.10 or custom |
Substrate | N-PSK53A/N-LASF9 N-BK7/N-SF5 N-LAK22/N-SF6 N-BAF10/N-SF10 N-SSK8/N-SF56 N-BASF64/N-SF66 S-BAH11/N-SF10 ETC. |
Coating | MgF2 or custom |
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas: Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etExtra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
